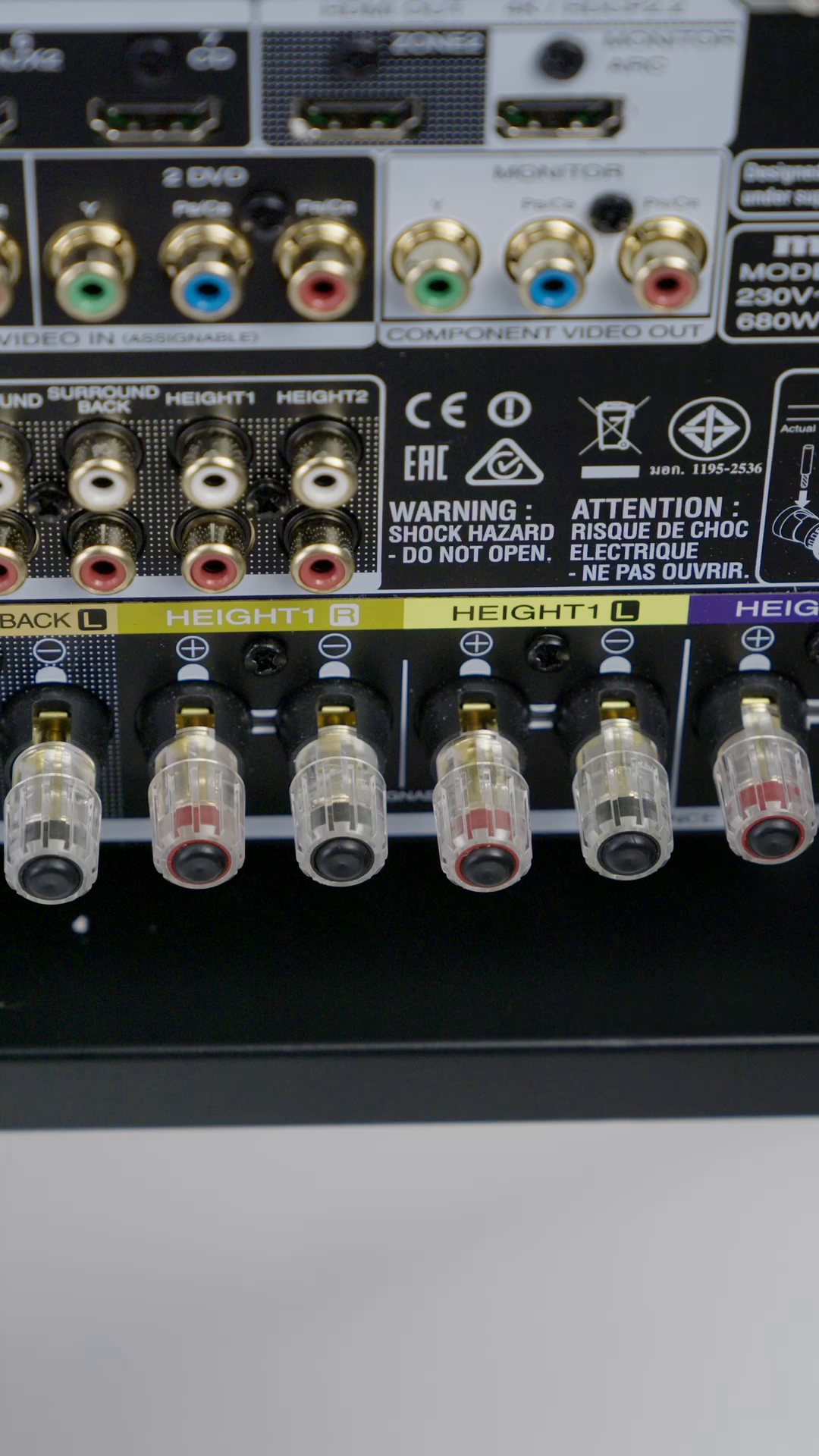

Make sure your amplifier is fully Dolby Atmos® compatible and that it has dedicated “Height left” and “right” terminals.

7_1_3_ac9733f88b_thumbnail

Before connecting

Connect the loudspeakers using the correct connectors for the front speaker drivers and for the Dolby Atmos® speaker driver, matching them with the corresponding amplifier terminals

7_2_2019c16530_thumbnail

Connecting Dolby Atmos®

The grille is magnetic so that it fits one way only, to optimise how it guides the waves
